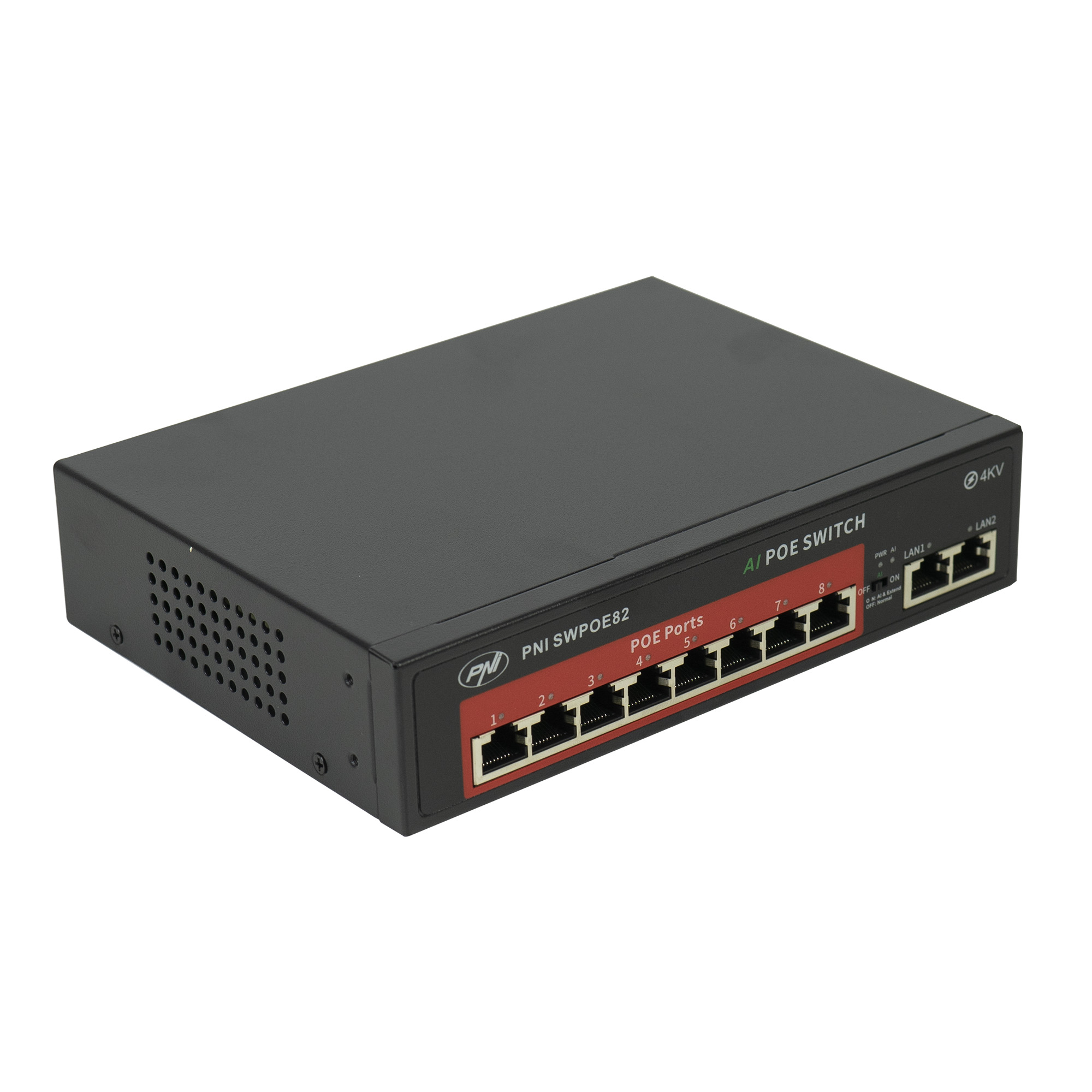

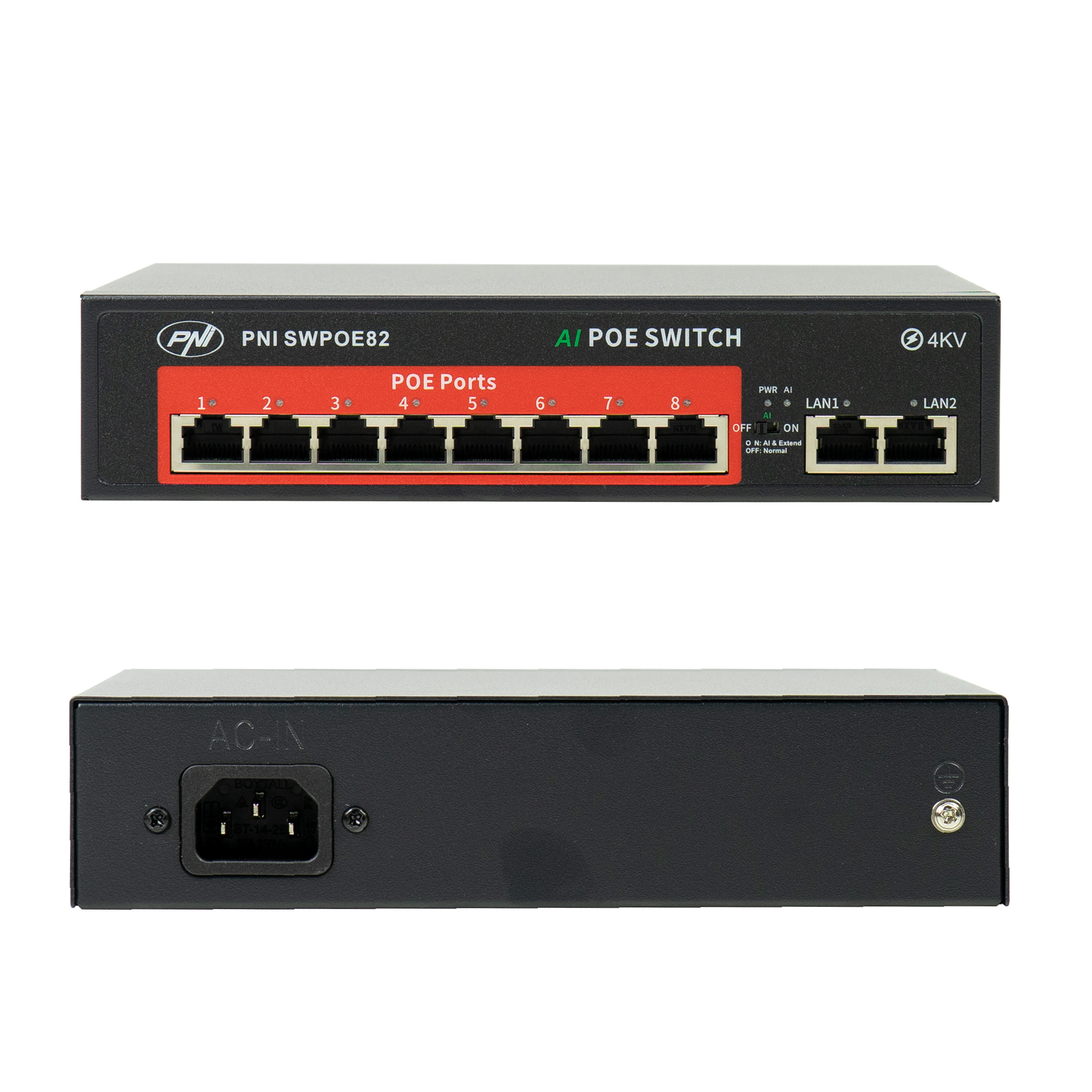

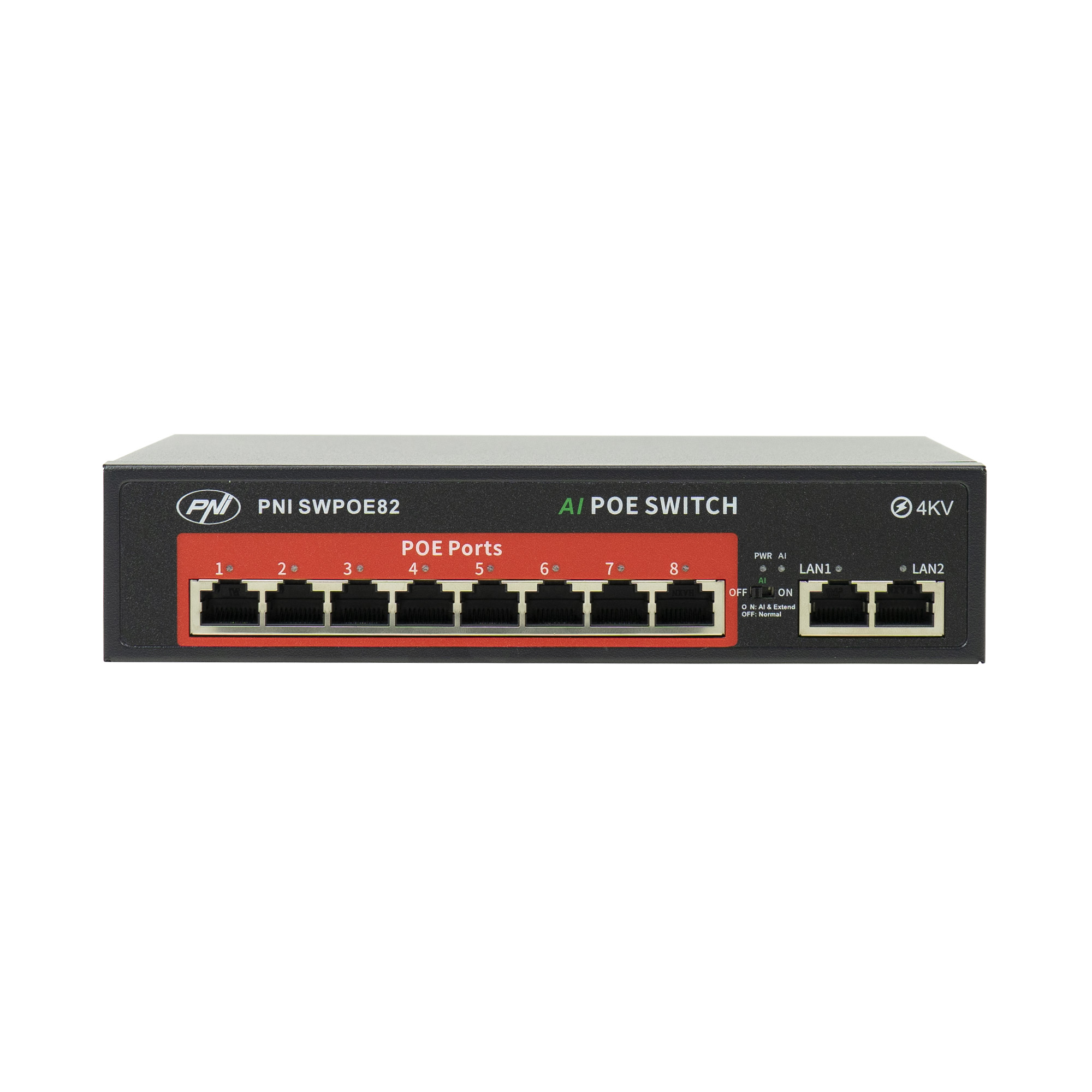

SWPEO82 Switch

Switch POE PNI SWPOE82, 8 POE 100 Mbit/s-Ports und 2 UP Link 100 Mbit/s-Ports, 120 W, AI Extend-Funktion bis zu 250 m, 4 kV-Blitzschutz

Number of ports 8 x POE 100 Mbps + 2 x 100 Mbps LAN
Transfer rate 10/100Mbps
Connector type RJ-45
Supported standards IEEE 802.3 Ethernet Media Access Control Protocol; IEEE 802.3i 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX Fast Ethernet; IEEE 802.3af; IEEE 802.3t; IEEE 802.3x.
Band width 1.2G
Data transfer rate Ethernet 10Mbps half duplex, 20Mbps full duplex; Fast Ethernet 100Mbps half duplex, 200Mbps full duplex;
Maximum transfer distance 100Base-TX: 2 CAT5 or higher UTP/STP (≤ 100m); 10Base-TX: 2 CAT5 or higher UTP/STP (≤ 250m);
Supply voltage 100-250V 50/60Hz
size 190 X 140 X 45 mm
Weight 822 gr
Ambient temperature -26°C ~ +80°C
Standard PoE 8 x POE 100Mbps
PoE power mode 52V DC max. 120W (total); 30W (per port)
Lightning protection 4KV
MAC 2K

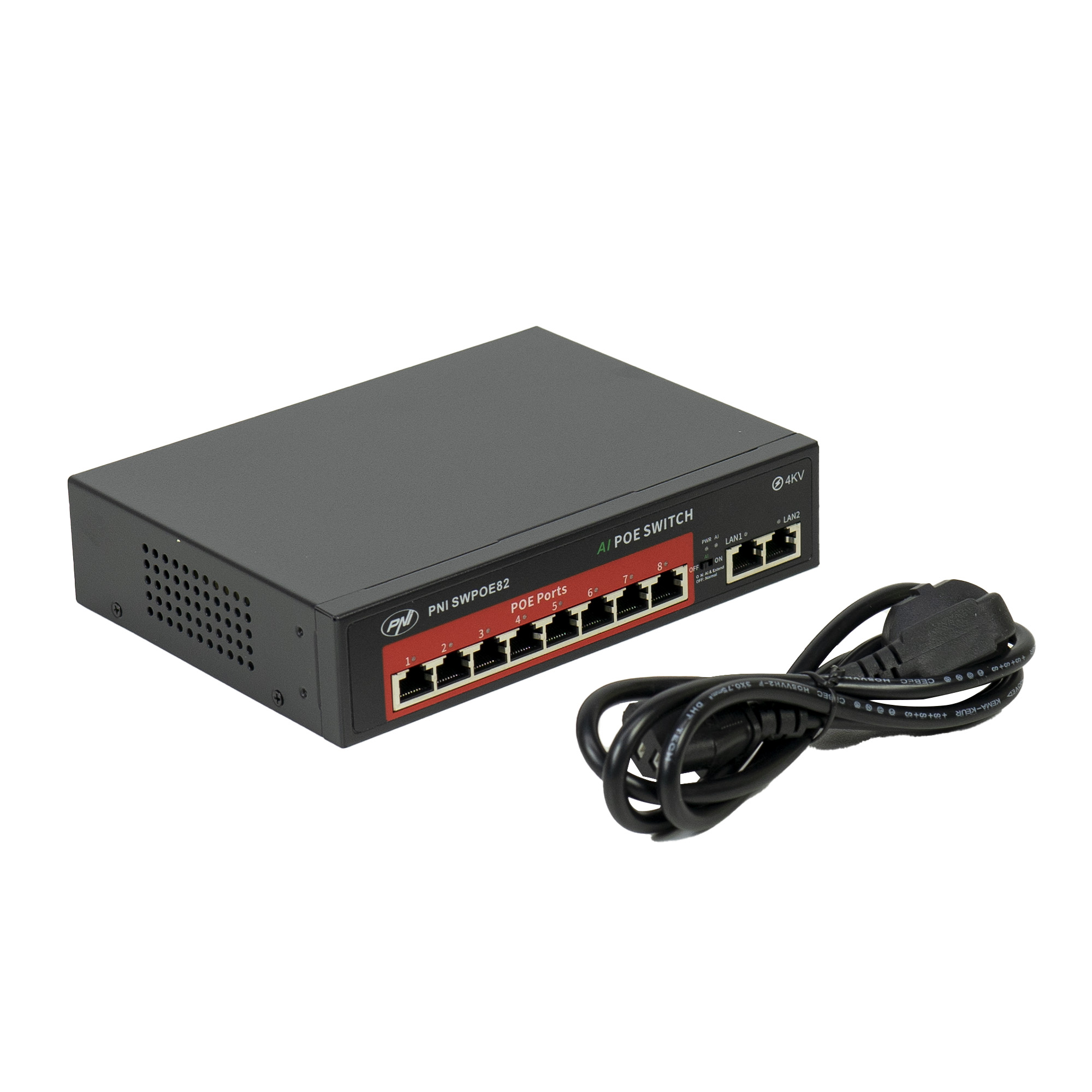

The package contains
Power cord Yes
Switch Yes
Manual Yes
